Your vehicle details
Your vehicle details
Make: Citroen
Model: Relay
Engine:
2.2
Year: 2006
Fuel: diesel
Vehicle data is for guidance only. If unsure, please contact your local branch before ordering.

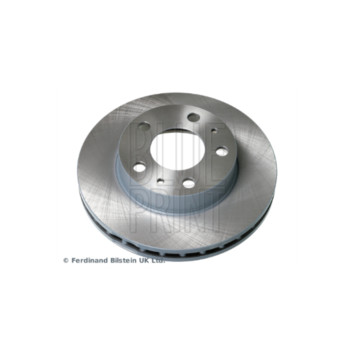

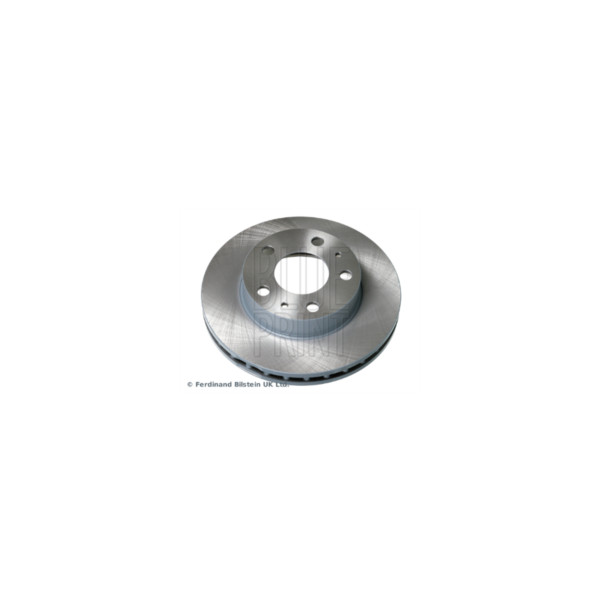

Blue Print BRAKE DISC SINGLE (Front)
£80.71
£67.26
Fits the following vehicles
- Relay 2.2 BlueHDI 110 290 (2014-) 01/06-04/20
- Relay 2.2 BlueHDI 110 290 (2014-) 01/06-12/20
- Relay 2.2 BlueHDI 120 290 (2014-) 01/06-10/23
- Relay 2.2 BlueHDI 130 290 (2014-) 01/06-
- Relay 2.2 BlueHDI 150 290 (2014-) 01/06-
- Relay 2.2 BlueHDI 165 290 (2014-) 01/06-10/23
- Relay 2.2 e-HDI 130 290 (2014-) 01/06-
- Relay 2.2 HDi 100 250 (2006-2014) 01/06-04/12
- Relay 2.2 HDi 100 250 (2006-2014) 01/06-06/11
- Relay 2.2 HDi 100 250 (2006-2014) 01/06-12/12
- Relay 2.2 HDi 110 250 (2006-2014) 01/06-04/20
- Relay 2.2 HDi 110 250 (2006-2014) 01/06-12/20
- Relay 2.2 HDI 120 250 (2006-2014) 01/06-04/12
- Relay 2.2 HDI 120 250 (2006-2014) 01/06-12/11
- Relay 2.2 HDI 120 250 (2006-2014) 01/06-12/12
- Relay 2.2 HDI 130 250 (2006-2014) 01/06-
- Relay 2.2 HDI 150 250 (2006-2014) 01/06-
In Stock
Fitment details for Relay 2.2 BlueHDI 110 290 (2014-)
| Description | Brake Disc |
|---|---|
| Engine Code | 4HG, DW12RUE, 4HH, 4HU, DW12RUC, 22DT, 22DTPUMA, 22DT, DW12TED, 22DTPUMA, 4HV, 22DT, 22DT100CV, P22DTE, 22DTPUMA, DW12UTED, 22DT, 22DTPUMA, 22DTPUMA, 4HU/22DT, 22DT, 4HM22DT, DW12UTED, DW12TED, P22DTE, 4HH |
| BHP | 108, 118, 129, 148, 162, 100, 120, 128 |
| Type | Vented |
| Part Detail | Fixing Holes:2;Mounting Bores:5 |
| Size mm | Centre Dia.:80;Height:73.6;Min. Thickness:29.9;Outer Dia.:300;P.C.D.:130;Thickness:32 |
| Note | Payload [kg]:2000 |
| Fitment Detail | front axle |
| Note 2 | Payload [kg]:1600, Payload:for increased payload |
