Your vehicle details
Your vehicle details
Make: Citroen
Model: Relay
Engine:
2.2
Year: 2006
Fuel: diesel
Vehicle data is for guidance only. If unsure, please contact your local branch before ordering.

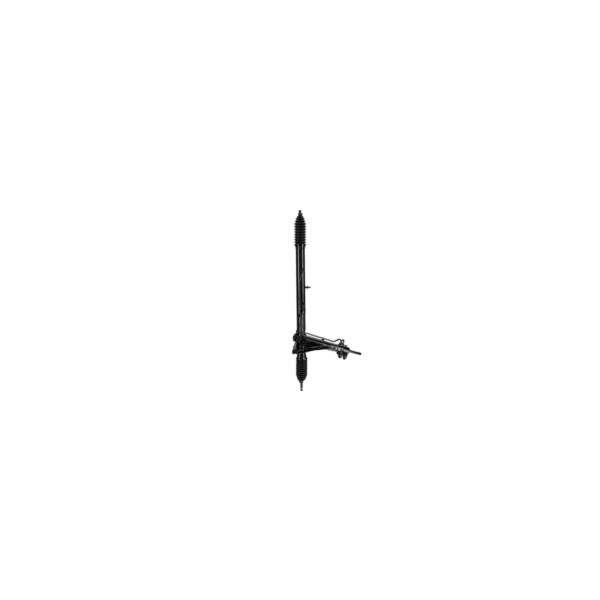

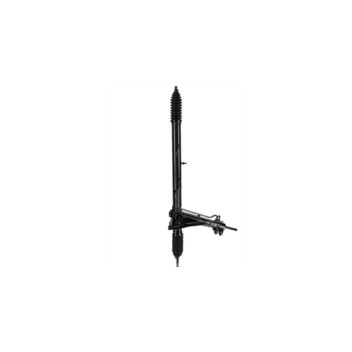

Shaftec POWER STEERING RACK
£478.20
£398.50
Fits the following vehicles
- Relay 2.2 HDi 100 250 (2006-2014) 10/06-04/12
- Relay 2.2 HDI 120 250 (2006-2014) 10/06-04/12
Please note: this Shaftec POWER STEERING RACK has a surcharge of £270.00.
If you return your old Shaftec POWER STEERING RACK the surcharge will be refunded.
If you return your old Shaftec POWER STEERING RACK the surcharge will be refunded.
In Stock
Fitment details for Relay 2.2 HDi 100 250 (2006-2014)
| Description | Steering Gear |
|---|---|
| Engine Code | 4HV, DW12TED, 22DTPUMA, 22DT, 22DT100CV, 22DTPUMA, DW12TED, 22DT, DW12UTED, 4HM22DT, 4HU/22DT |
| BHP | 100, 120 |
| Thread Size mm | Entry: M12 x 1.5;Exit: M14 x 1.5 |
| Length mm | L.:1320 |
| OE System | TRW |
| Part Detail | Op. Mode: Hydraulic;Remanufactured Part;No. of Mt. Bores: 2;Pinion Timing: 9;Stroke: 186 mm;With fitting for steering angle sensor;Rack-and-pinion steering gear;No. of Input Shaft Splines: 22;Connector type: Splined;with screw connection |
| Note | Turns Lock to Lock: 3.8 |
| Size mm | Pinion L.: 100;Mount. Bore Dist.: 90;Mount. Points Dia.: 14;Tie Rod Thread Size: M16 X 1.5 |
| Vehicle Detail | With servotronic steering |
